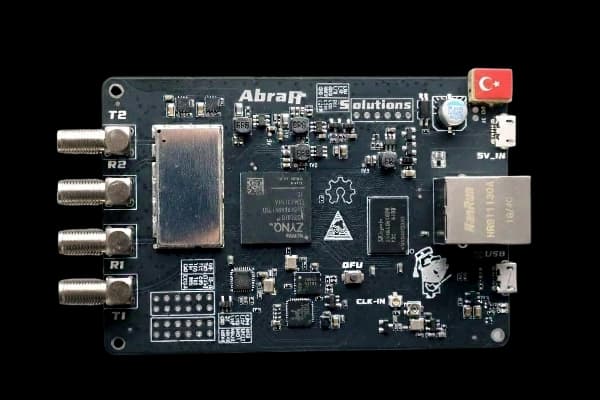

Abra SDR

Teknik Bilgi

Features & Specifications

• RF ChipsetAnalog Devices AD9363 / AD9361
• FPGA ChipsetAMD/Xilinx ZYNQ7020
• Channels2 × 2 MIMO
• Sample Rate200 kS/s - 61.44 MS/s
• Tuning RangeAD9363: 325 MHz - 3.8 GHz, AD9361: 70 MHz - 6 GHz
• RF bandwidthAD9363: 200 KHz - 20 MHz, AD9361: 200 KHz - 56 MHz
• RF Transmit PowerUp to 10 dBm
• Flash Memory1x QSPI 256 Mb flash memory for firmware
• RAM512 MB DDR3
• Clock System40M VCXO and PPS/10M Reference clock input
• Connectivity2x SMA and 2x U.FL connectors 1x Gigabit Ethernet 1x Micro SD card slot FPGA JTAG connector for external JTAG programmer/debugger 8x PL GPIO interfaces
